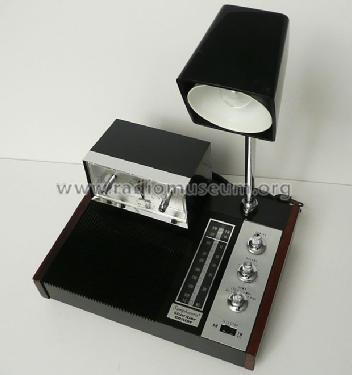

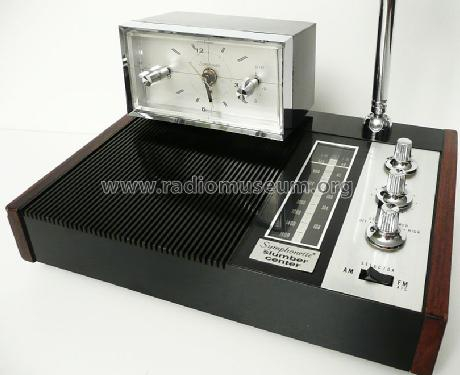

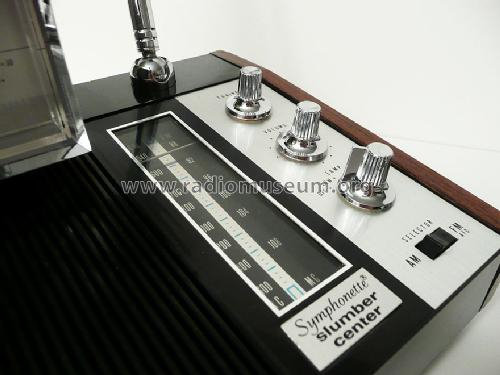

Fingerhut LCR-500

昨日ランプラジオの記事を載せました関係で大ヒット機種を思い出しましたランプラジオと言えば数年間大量注文を受けた機種 Fingerhut 向け機種 Longines Symphonette LCR-500 です、この機種のメカ設計は岩本さん、電気は?ランプステーはF社出入りのロッドアンテナメーカーでした。販売先は大森さんのコメントのおかげで Fingerhut である事を思い出しました有難うございました。 (記事のバイヤー名を修正しました25.07.2011)



Country: United States of America (USA)
Manufacturer/Brand: Longines Symphonette; (where?)
Year: 1975 ?? Type: Radio - or past WW2 tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general); IF-Freq 455/10700 kHz
Wave bands Broadcast (BC) and FM.
Details Radio with other functions
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch
Power out 0.5 W
from Radiomuseum.org Model: Slumber Center LCR-500
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 230 x 280 x 170 mm / 9.1 x 11 x 6.7 inch
Notes Symphonette LCR-500 slumber center;
AFC, lamp fixed on a telescopic adjustable arm, lamp with 3 step dimmer,
timer/watch and alarm clock, 6 W power consumption, 20 W with lamp high, made in Japan.
The clockwork runs on 60 Hz AC. Not suitable for 50 Hz mains(eg. for Europe).

 (写真とデータはRadiomuseumより引用しました)
