Westinghouse 24B1

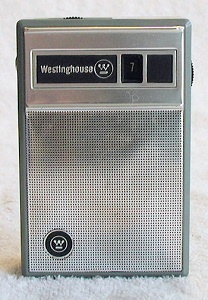

社史12Pに写真が載っていた Westinghouse 向けの6石ワンバンドラジオに付いて

Model: H-707P6GPA
Country: United States of America (USA)
Manufacturer/Brand: Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name
Westinghouse El. Int.
Year: 1965 ? Type: Radio - or past WW2 tuner
Semiconductors (the count is only for transistors) 6:
Principle Super-Heterodyne (Super in general); IF-Freq 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) 5.1 cm
Power out 0.2 W
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 60 x 94 x 26 mm / 2.4 x 3.7 x 1 inch

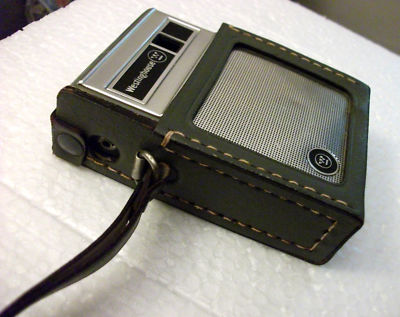

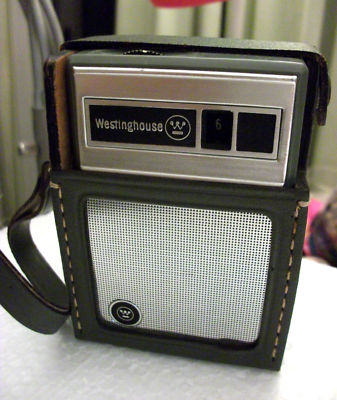

Notes wird mit Tasche geliefert , zusammengebaut in Taiwan
Net weight 0.2 kg / 0 lb 7 oz (0.441 lb)

配線図 部品配置図 PCBパターン面

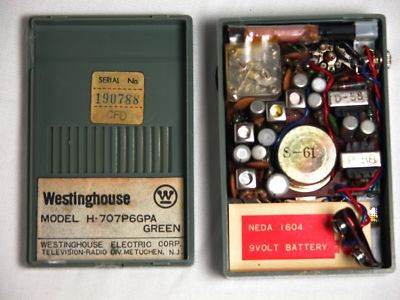

CFD 1965 Apr. 中電生産品

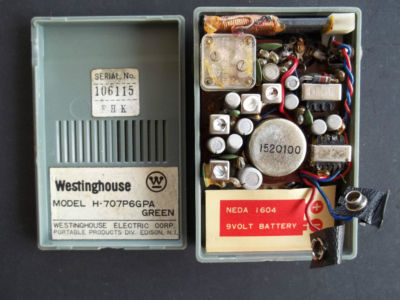

FHK 1967 Nov. 高雄生産品
